2024 Hebrock F5

2024 Hebrock F5
Location:Hodonín, Czechia
Description

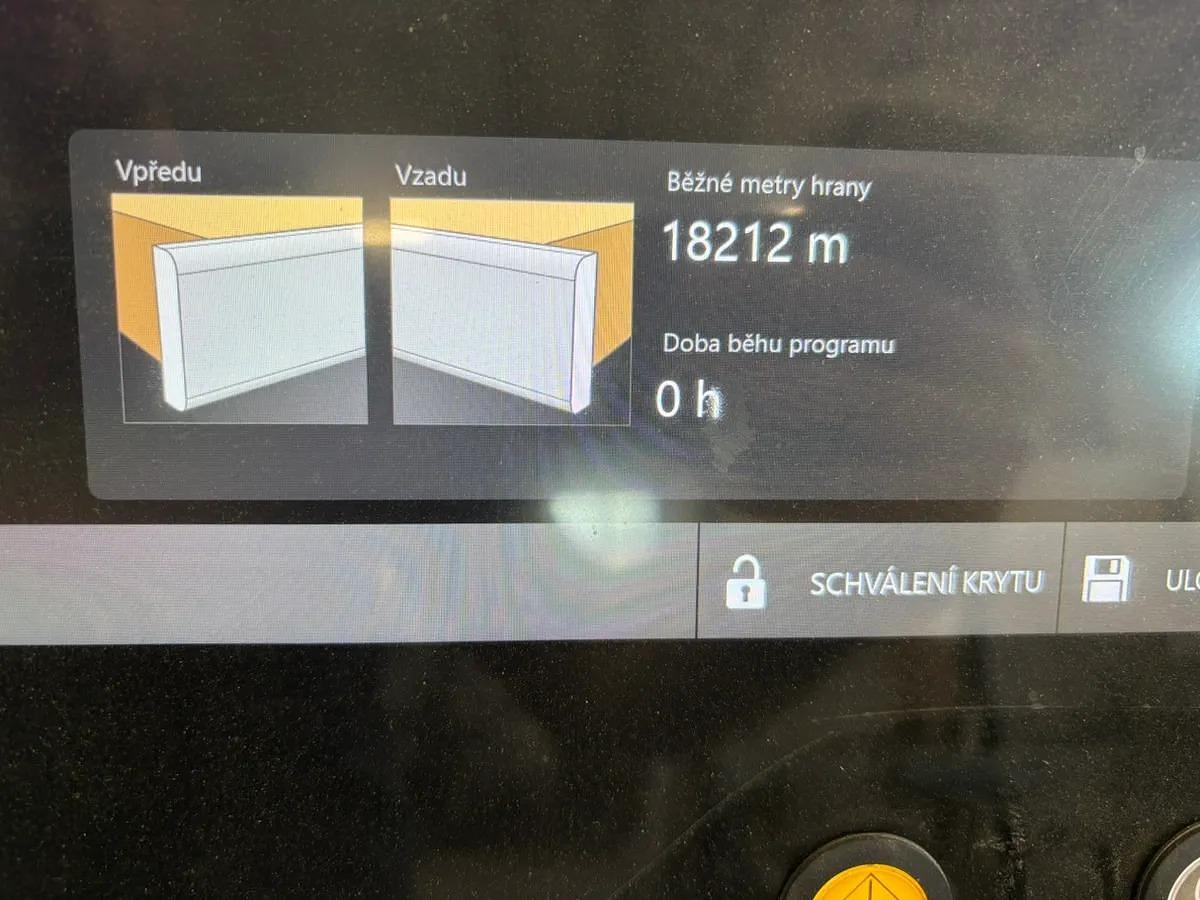

Hebrock F5 Professional Edgebander (12/2024) – a high-performance machine in excellent working condition, with only 18,212 linear meters (approx. 18 km) recorded on its digital counter.
The machine has been subject to a rigorous, periodic maintenance schedule; it is in impeccable cosmetic and mechanical condition and is ready for immediate integration into production lines.
Included Accessories and Equipment:
- Hebrock F5 main unit with a centralized touch-control interface.

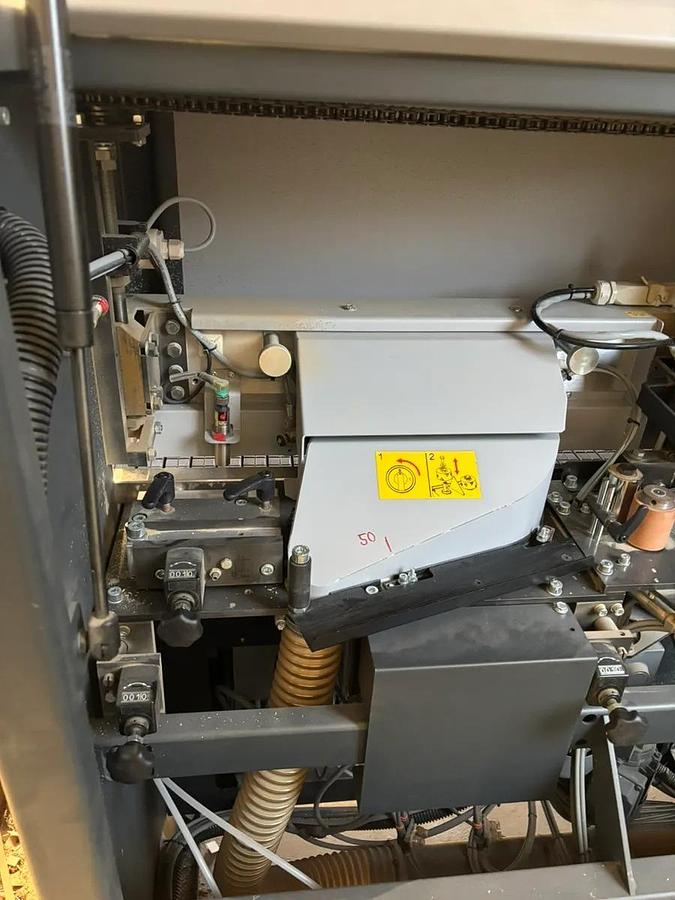

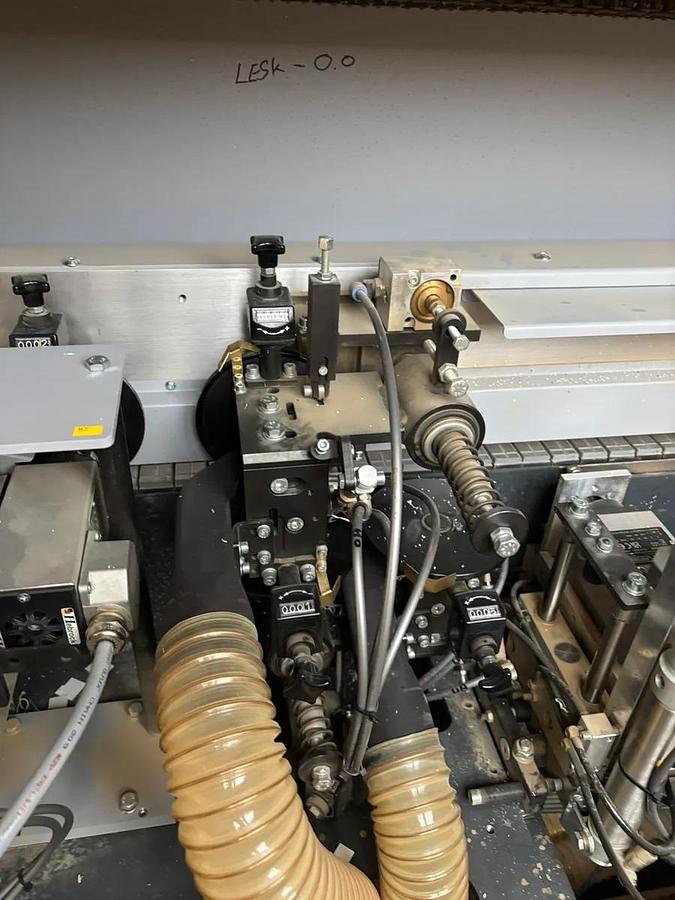

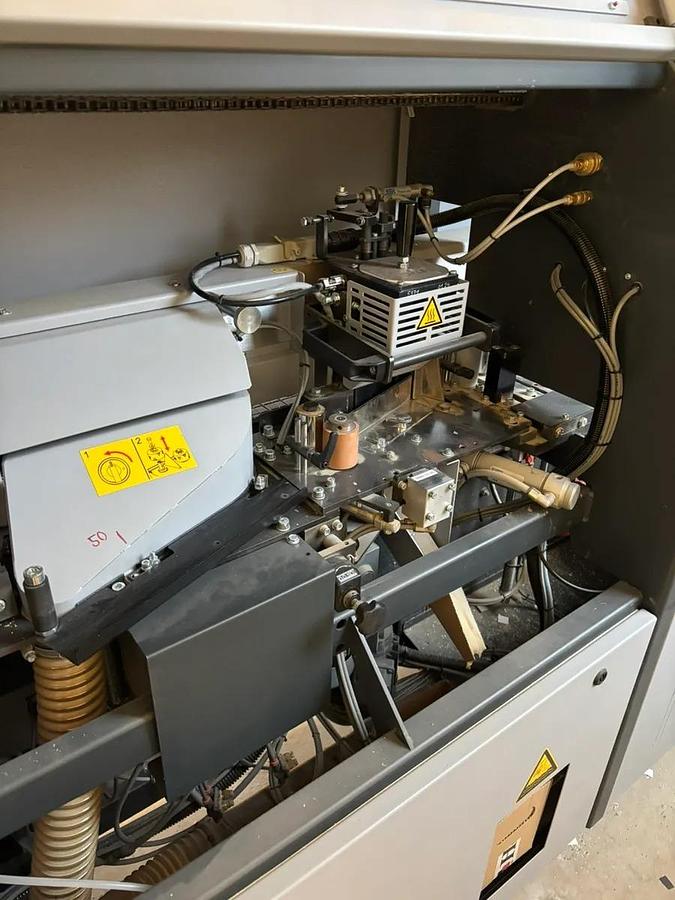

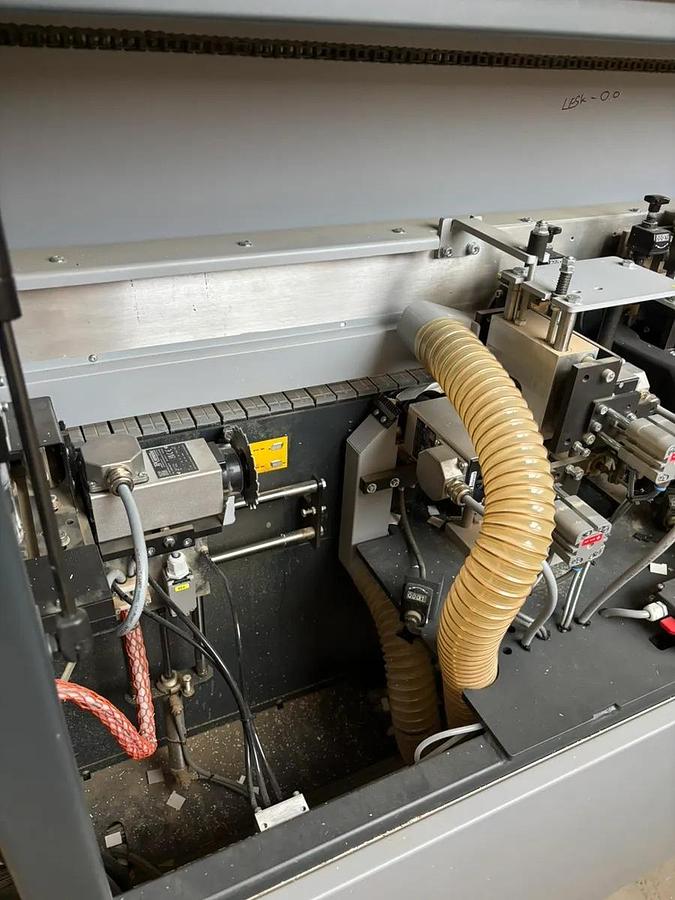

- Integrated processing units: Pre-milling unit, gluing unit, end-trimming saw, top and bottom milling unit, corner-rounding unit, profile scraper (radius scraper), surface scraper, and buffing unit.
- 2 glue pots/trays for efficient adhesive management.
- 2 radius scrapers: 1 mm attachment (currently in use) and 2 mm attachment (brand new/unused).
- Original technical documentation and complete manuals.
- Initial supply of adhesive.
- Dust extraction/suction system.
Inspection and Testing:
The equipment is available for technical inspection and operational demonstration by prior appointment.
Terms and conditions:
Used machine, offered in its current condition (as is, where is). Inspection available by appointment; management of commercial and logistical process.
Location:
Approximate location. Detailed information will be provided during the commercial process.
Technical information:
The technical information provided is indicative. The specifications, dimensions and capabilities may be subject to variations.
Specifications
| Manufacturer | Hebrock |
| Model | F5 |
| Year | 2024 |
| Condition | Used |
| Stock Number | 100274 |
| Total run | 18,212 m |
| Feed speed | 10 m/min |
| Workpiece thickness | 8 – 50 mm |
| Edge material thickness | 0.4 – 3.0 mm |
| Workpiece length | 160 mm |
| Workpiece width | 80 mm |
| Pre-milling depth | 2.0 mm |
| Warm-up time | approx. 3.5 min |
| Power | 400 V / 3 Ph / 50 Hz |
| Power consumption | 7.4 kW |
| Compressed air pressure | 6 – 8 bar |
| Dust extraction port | Ø 140 mm |
| Overall dimensions (L x W x H) | 4,300 x 1,400 x 1,450 mm |
| Working plane height | 880 – 900 mm |
| Approximate weight | 950 kg |
