2006 Felder Format 4 Profit 3 325 4 Axes

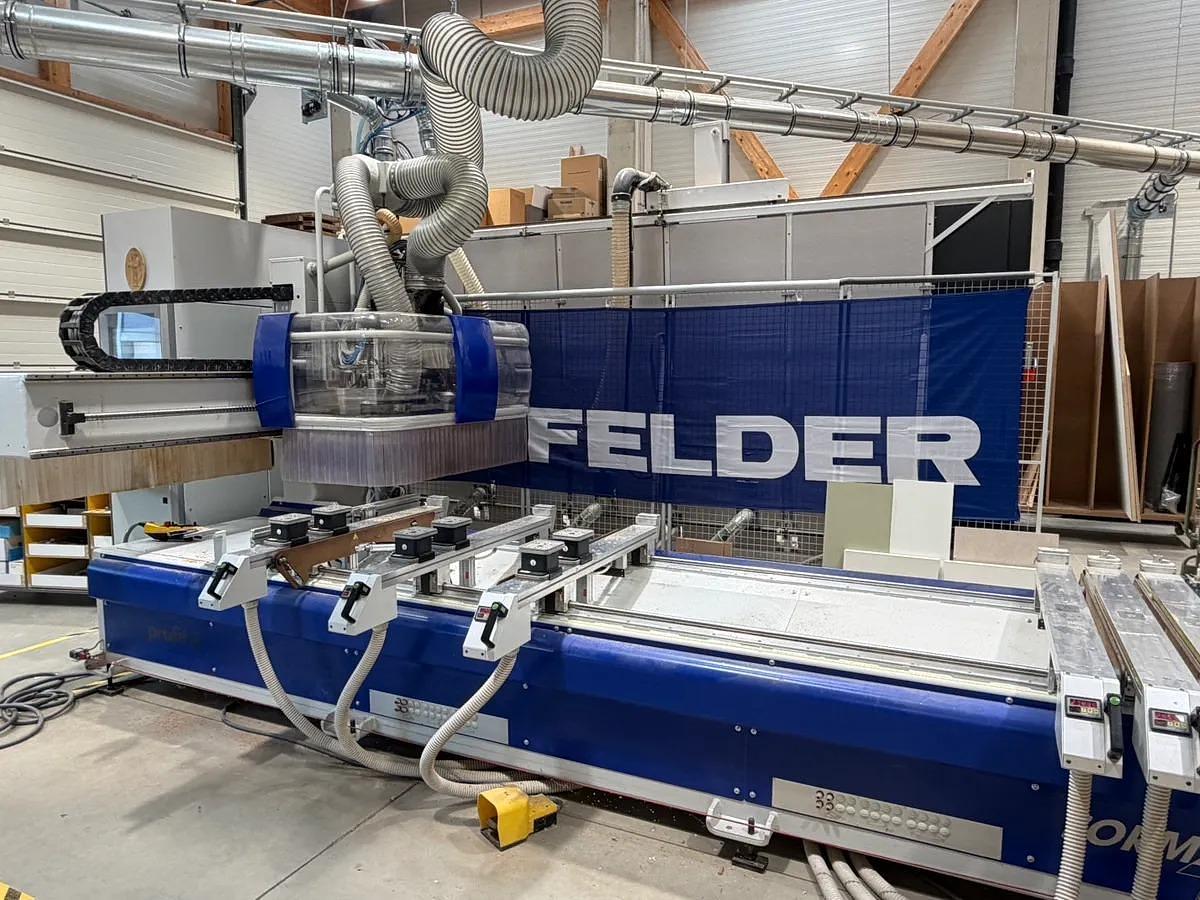

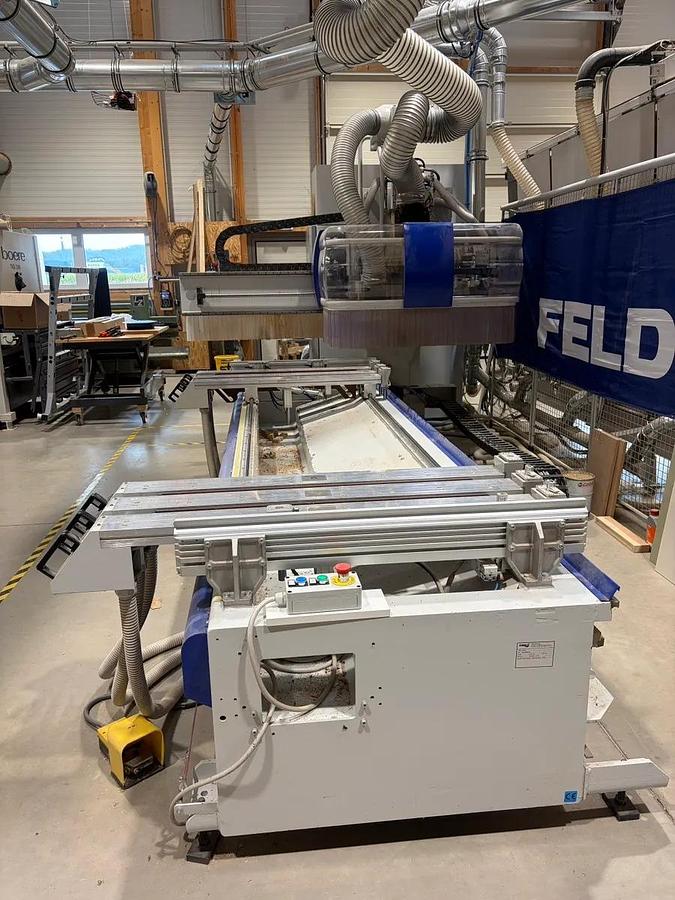

Format4 Profit 3-325 4-Axis CNC Machining Center

The Format4 Profit 3-325 (Felder Group) is a 4-axis CNC machining center designed to deliver high precision, speed, and versatility in the processing of wood, panel materials, and plastics. This machine stands out for its compact, highly rigid structure, a working envelope of 3,050 x 1,265 x 120 mm, and a configuration aimed at maximizing industrial productivity through pendulum-mode machining.

This unit (manufactured in 2006) is in good cosmetic and operational condition, having benefited from a solid annual preventive maintenance history. It has been upgraded with a modern PC-based CNC control, an Uninterruptible Power Supply (UPS), and a comprehensive, high-performance dust extraction system.

Machine Advantages:

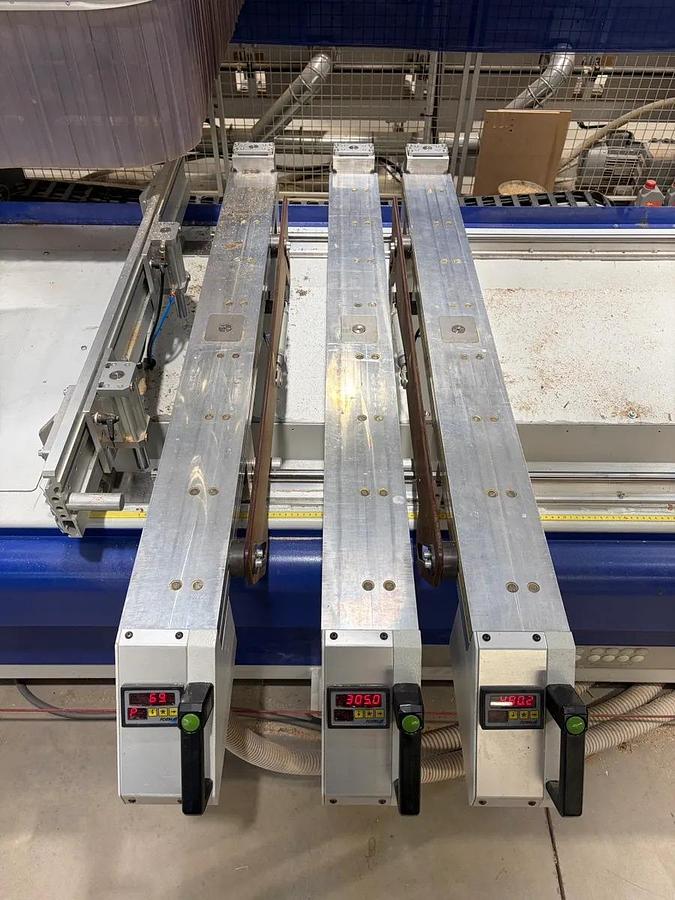

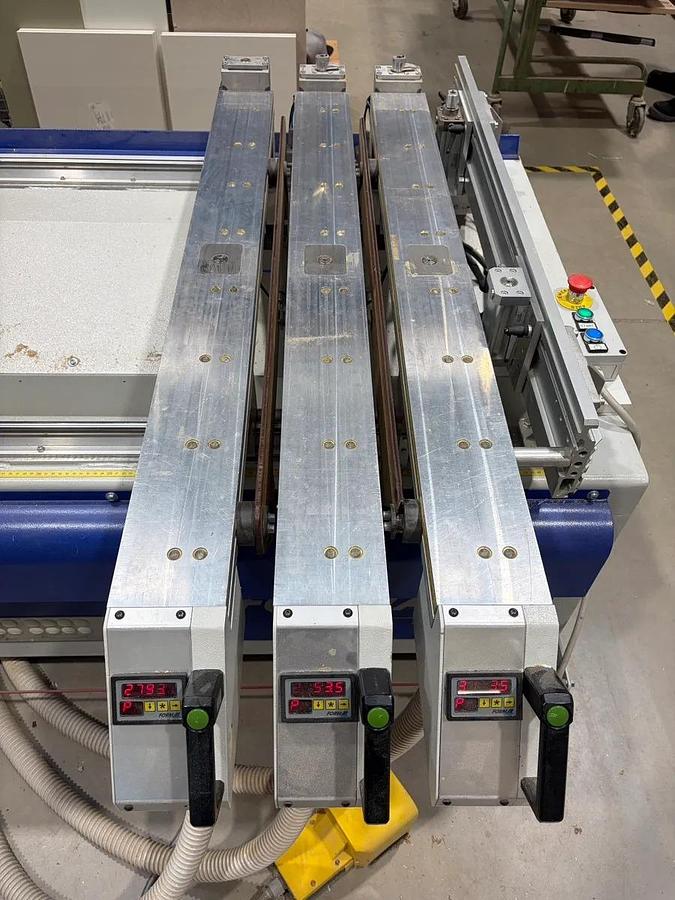

• Workpiece support: 6 consoles with vacuum cup mounts and clamping systems
• Positioning systems: Rotating sheet-metal stops with automatic activation
• Operating mode: Pendulum operation (alternating machining across two work zones to optimize loading/unloading times)

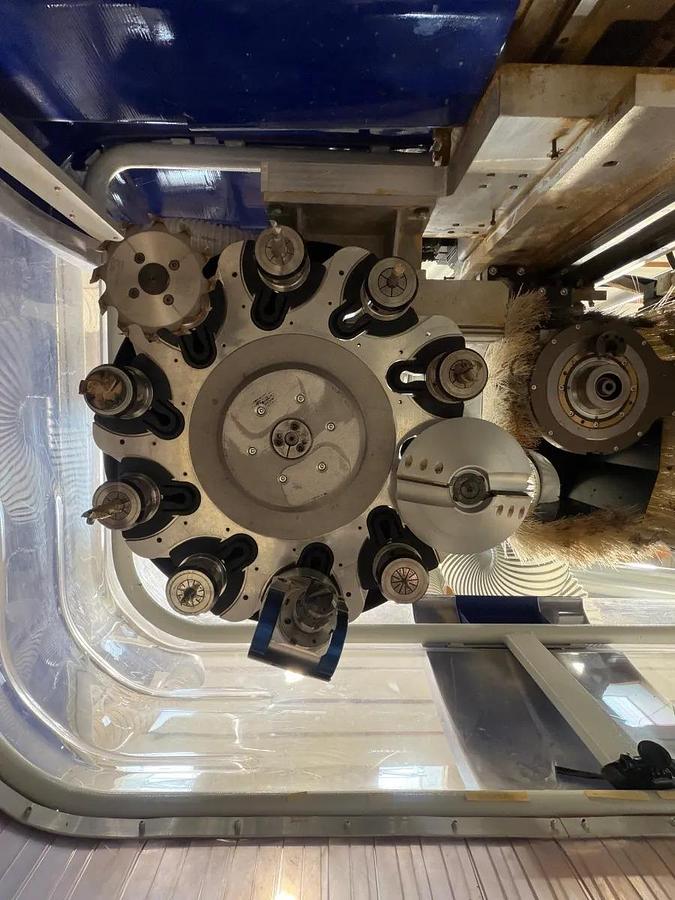

• Tool changer: Automatic 10-position rotary disk magazine
• Spindle clamping system: Interface for HSK63 tool holders/chucks
• Integrated cutting unit: Grooving saw blade oriented along the X-axis
• Main dust extraction port: 300 mm diameter
• Extraction monitoring: Digital display for reading and adjusting the extraction port position
• Dust extraction ducting: Internal extraction hoses fully replaced (recent)

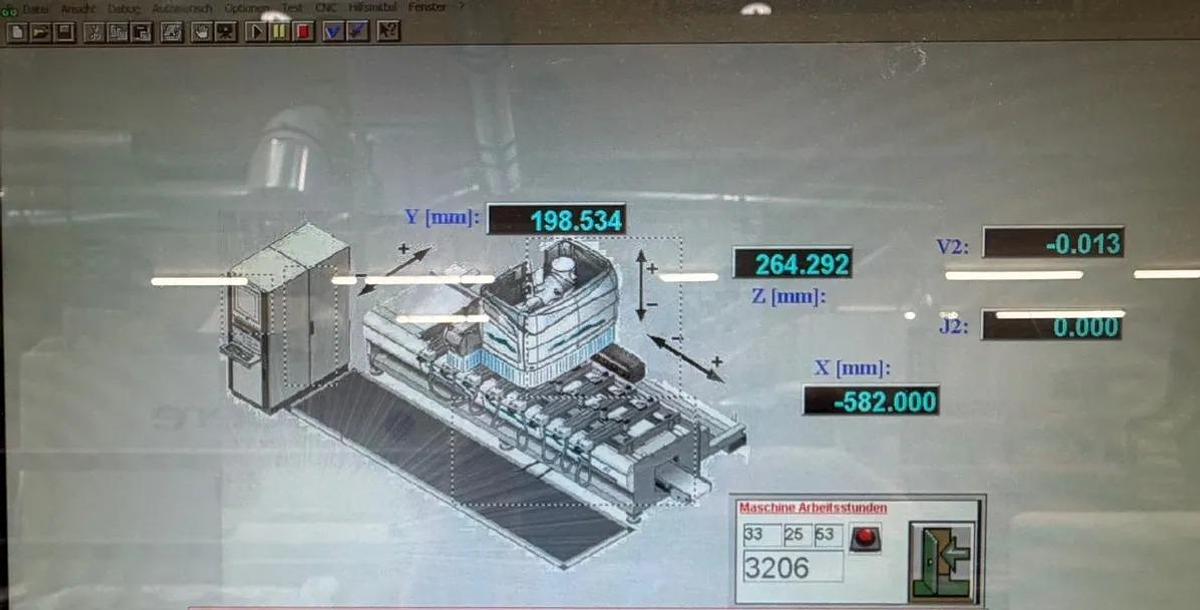

• Control unit (PC): PC hardware upgraded to a newer version (replacement of original unit)
• Power protection: Uninterruptible Power Supply (UPS) backup system to ensure controlled shutdown of the CNC control in the event of power failure or outage
• Control cabinet: Equipped with a digital display for continuous internal temperature monitoring and readout.

Terms and conditions:

Used machine, offered in its current condition (as is, where is). Inspection available by appointment; management of commercial and logistical process.

Location:

Approximate location. Detailed information will be provided during the commercial process.

Technical information:

The technical information provided is indicative. The specifications, dimensions and capabilities may be subject to variations.
