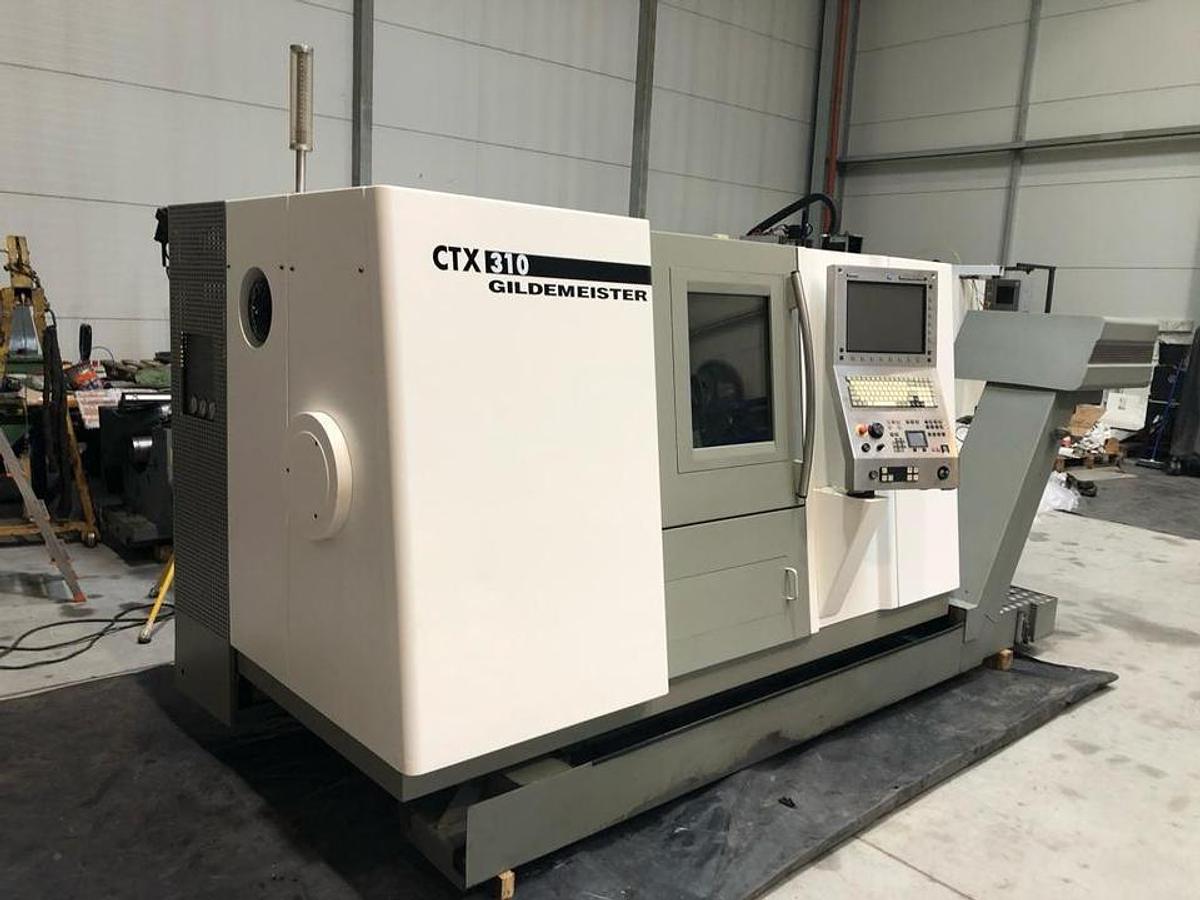

2006 Gildemeister CTX 310 V3 - CNC Turning centers

Pre-owned high-precision Gildemeister CTX 310 V3 CNC lathe, equipped with live tooling and a C-axis.

Manufactured to the high-end standards of the DMG Group, this lathe stands out for its ability to perform complex turning and milling operations in a single setup. Featuring a Heidenhain Plus CNC system, a 12-position VDI 30 turret, and a high-performance main spindle (up to 6,000 rpm), it offers a versatile and efficient solution for high-precision machine shops and short-to-medium batch production.

The machine has been well-maintained and comes equipped with a chip conveyor and a set of tool holders.

Machine Advantages:

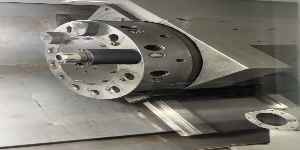

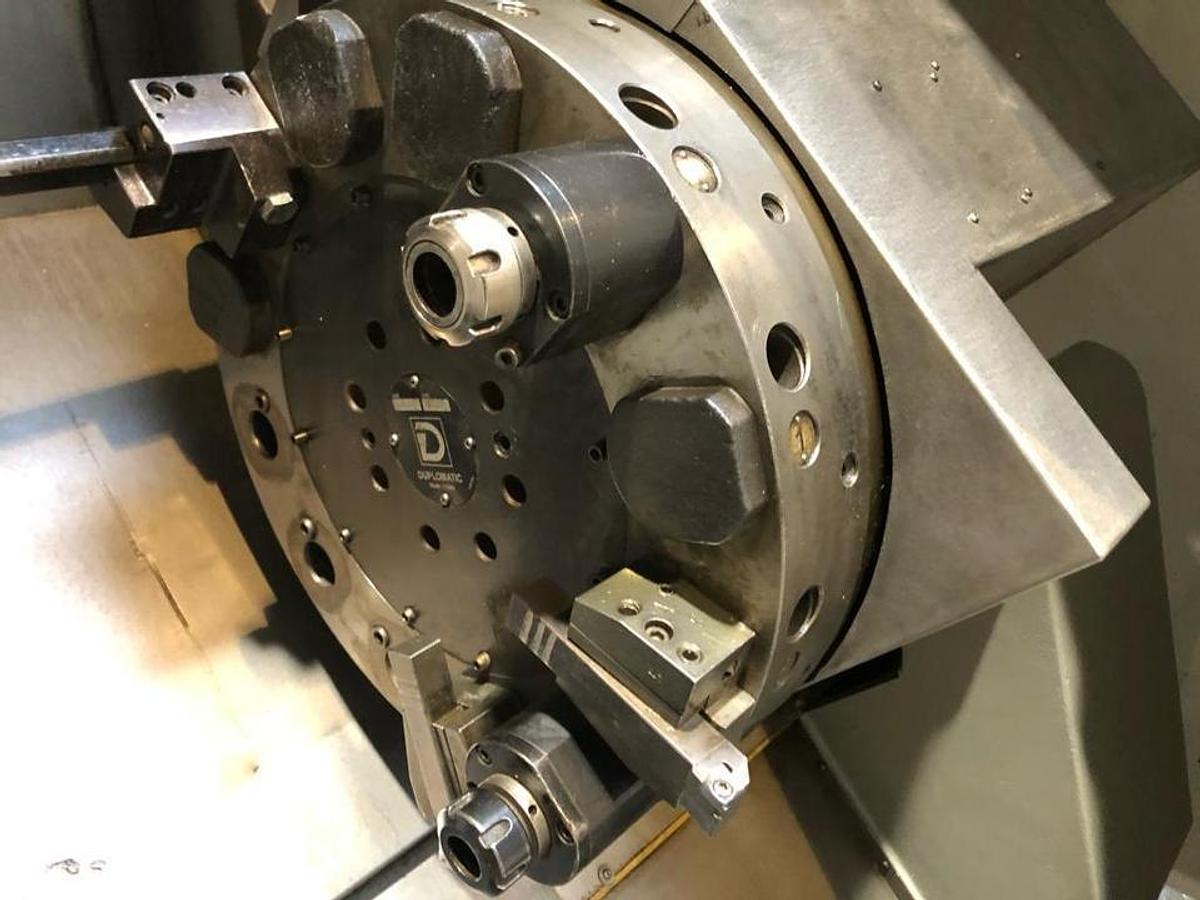

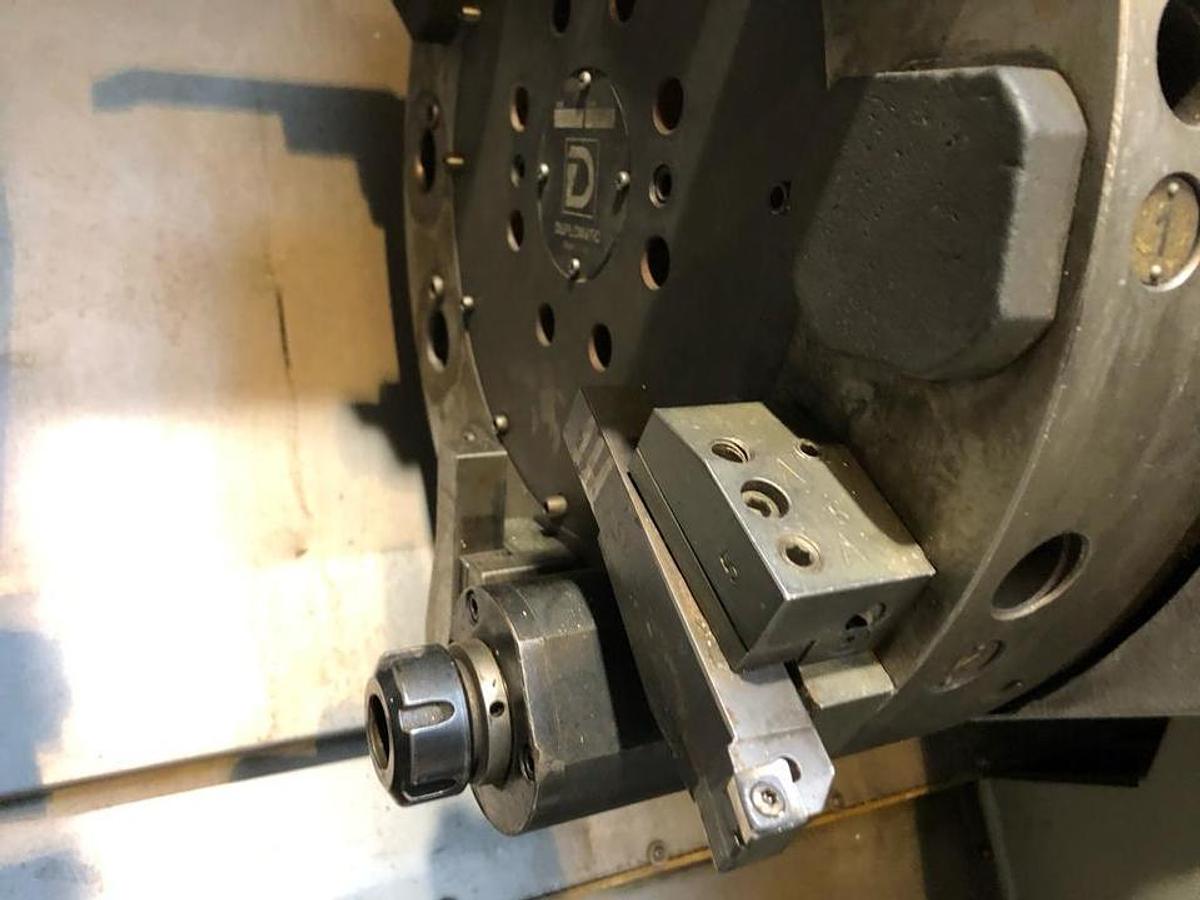

Complete Single-Part Machining (C-Axis + Live Tooling): Its 12-position turret for VDI 30 tool holders enables combined turning, milling, drilling, and threading operations without the need to switch machines.

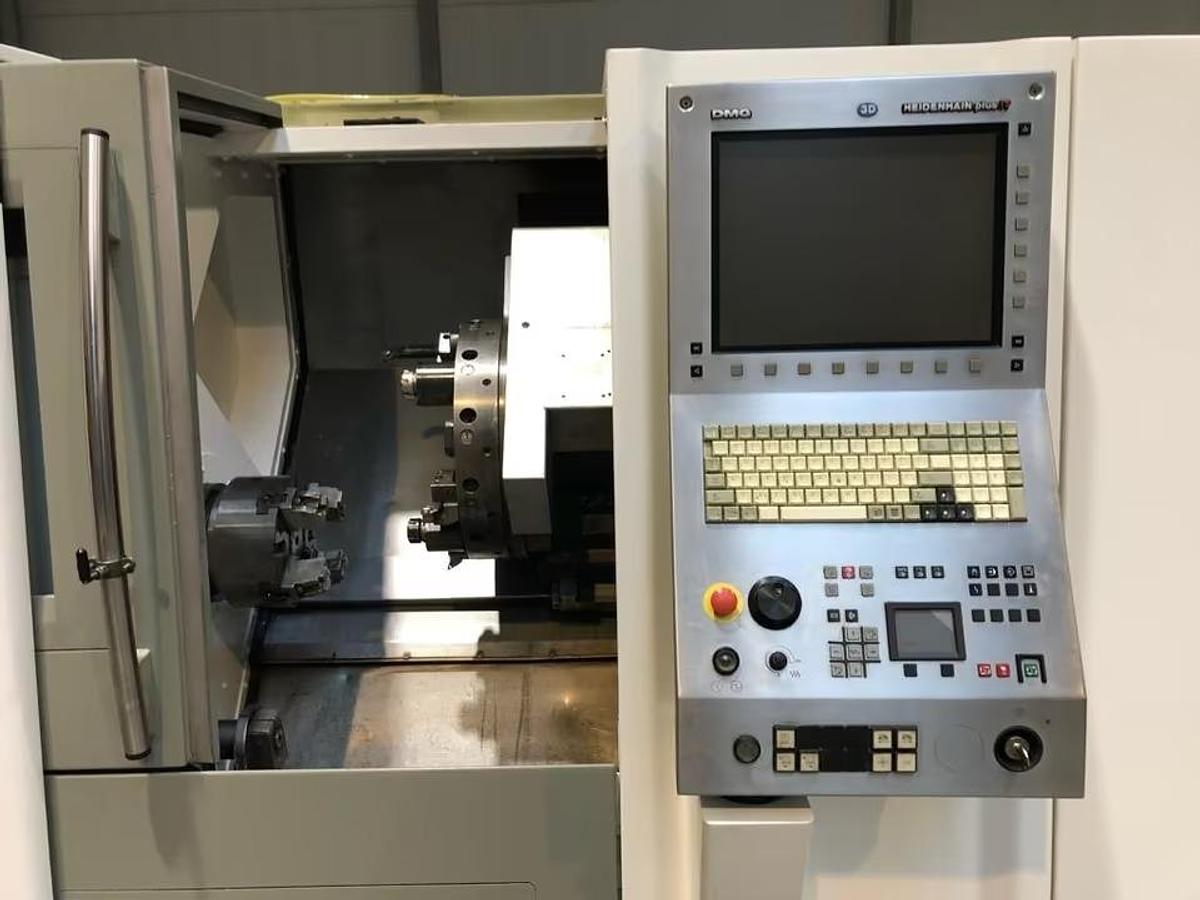

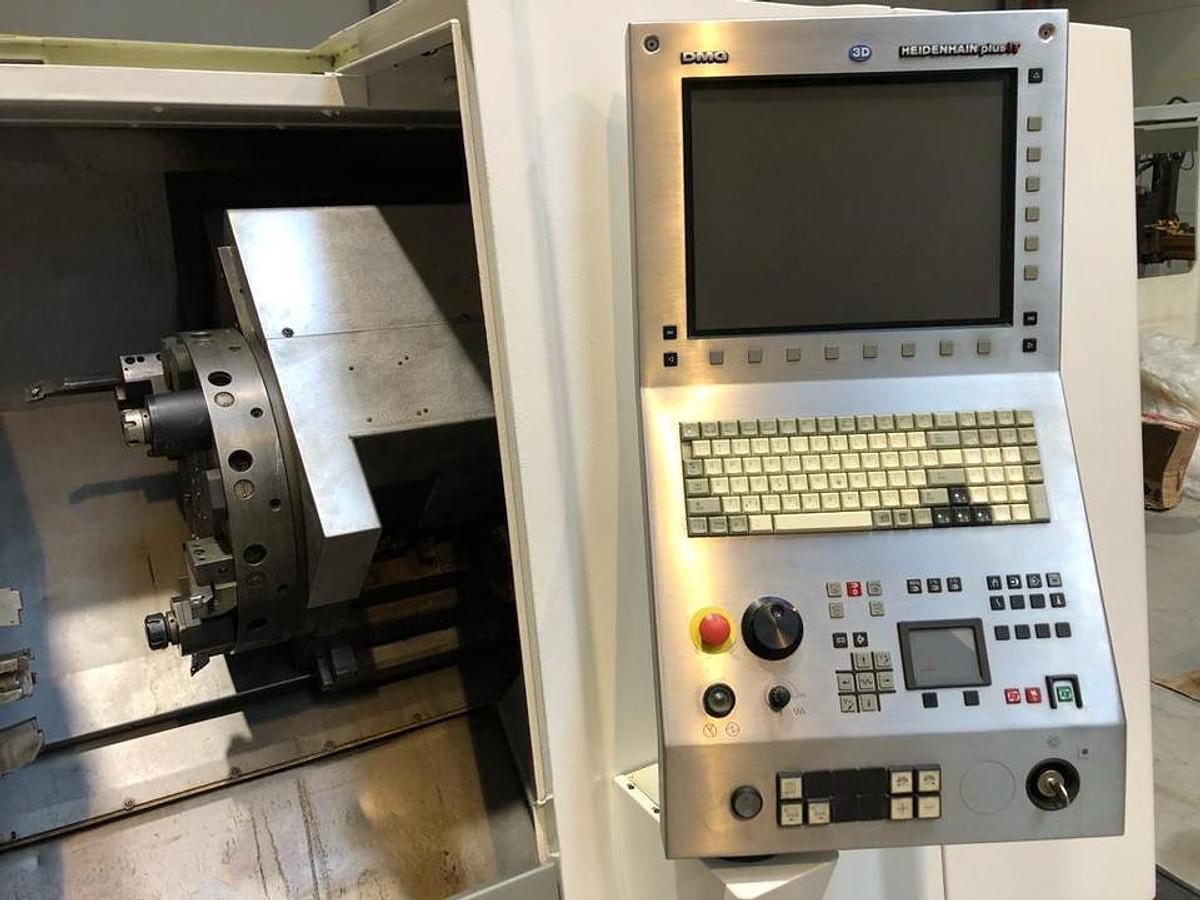

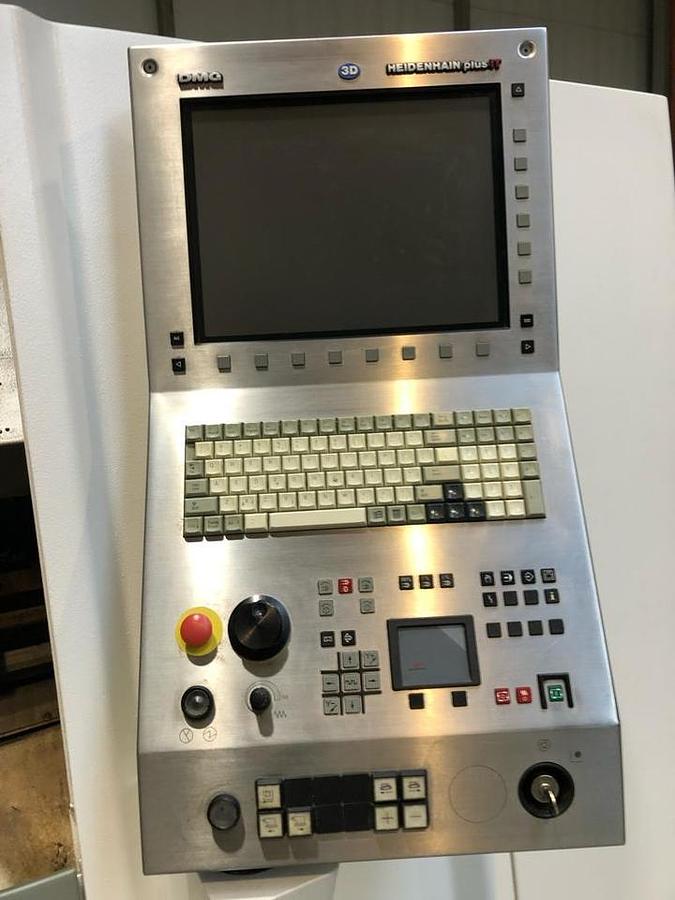

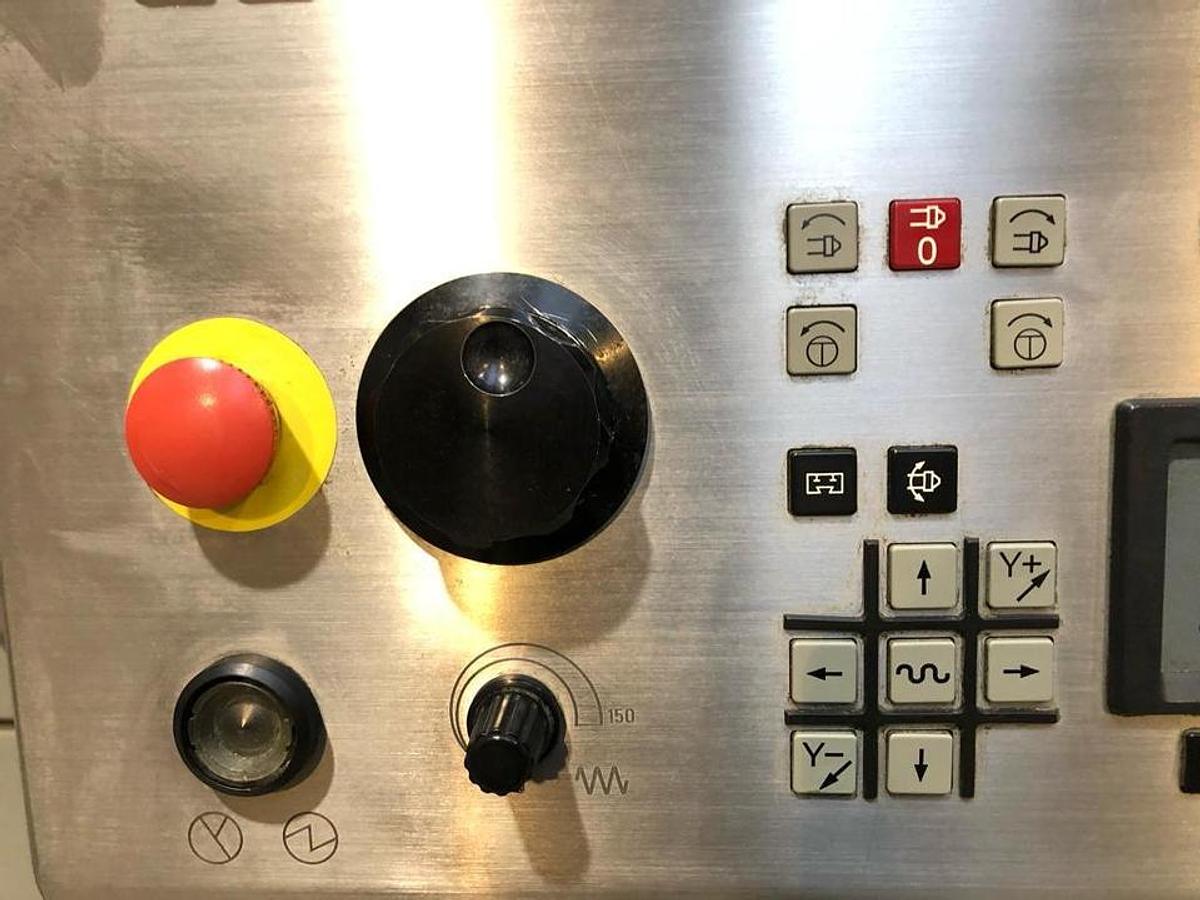

Intuitive CNC Control (Heidenhain Plus): An agile programming interface that significantly reduces setup times and optimizes the execution of complex geometries.

High Dynamics and High Torque: High-speed spindle (6,000 rpm) delivering up to 115 Nm of torque, with rapid traverse rates of 24 m/min (X) and 30 m/min (Z) to minimize machining cycles.

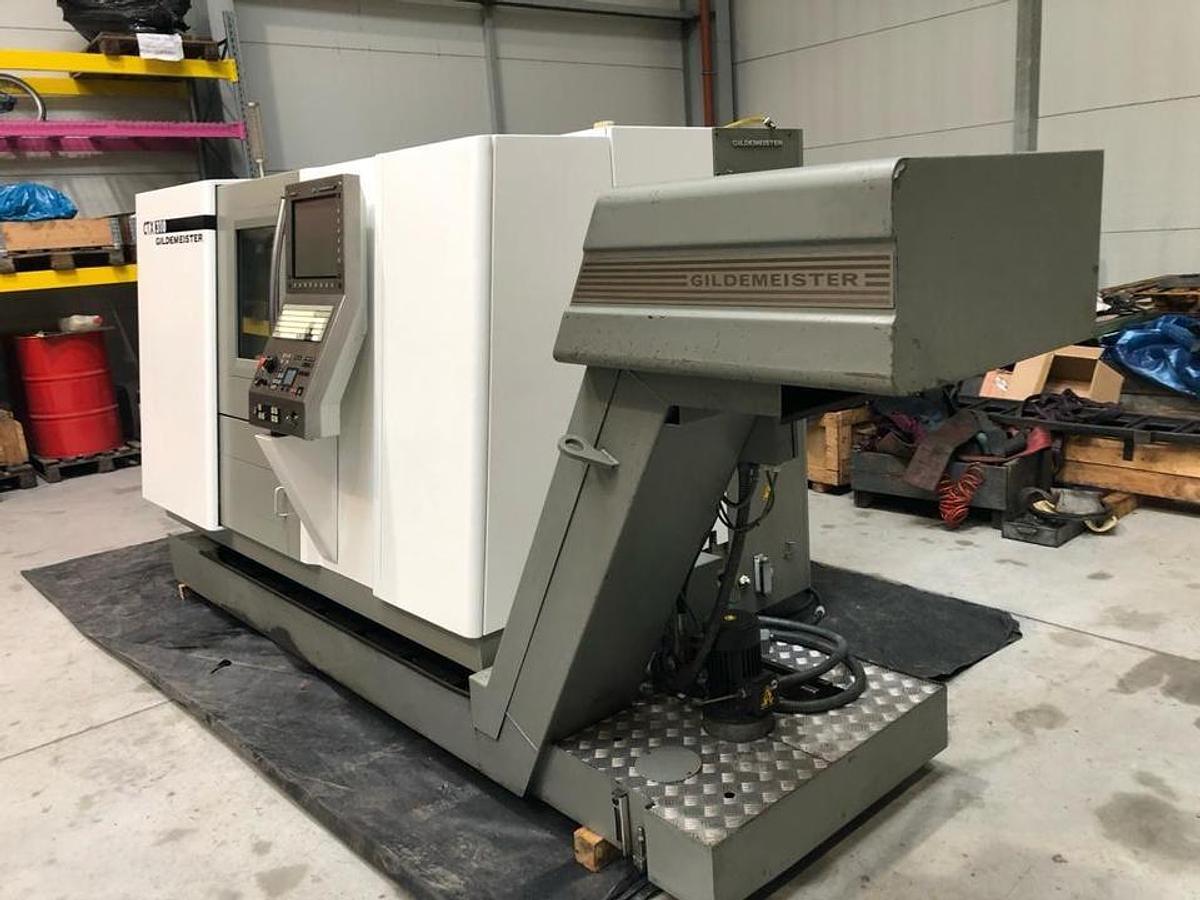

Rigid, Compact Construction: A robust structure weighing approximately 4 tons within a compact footprint (5.0 × 2.2 m, including conveyor) ensures maximum vibration stability without requiring excessive floor space.

Included Contents and Accessories:

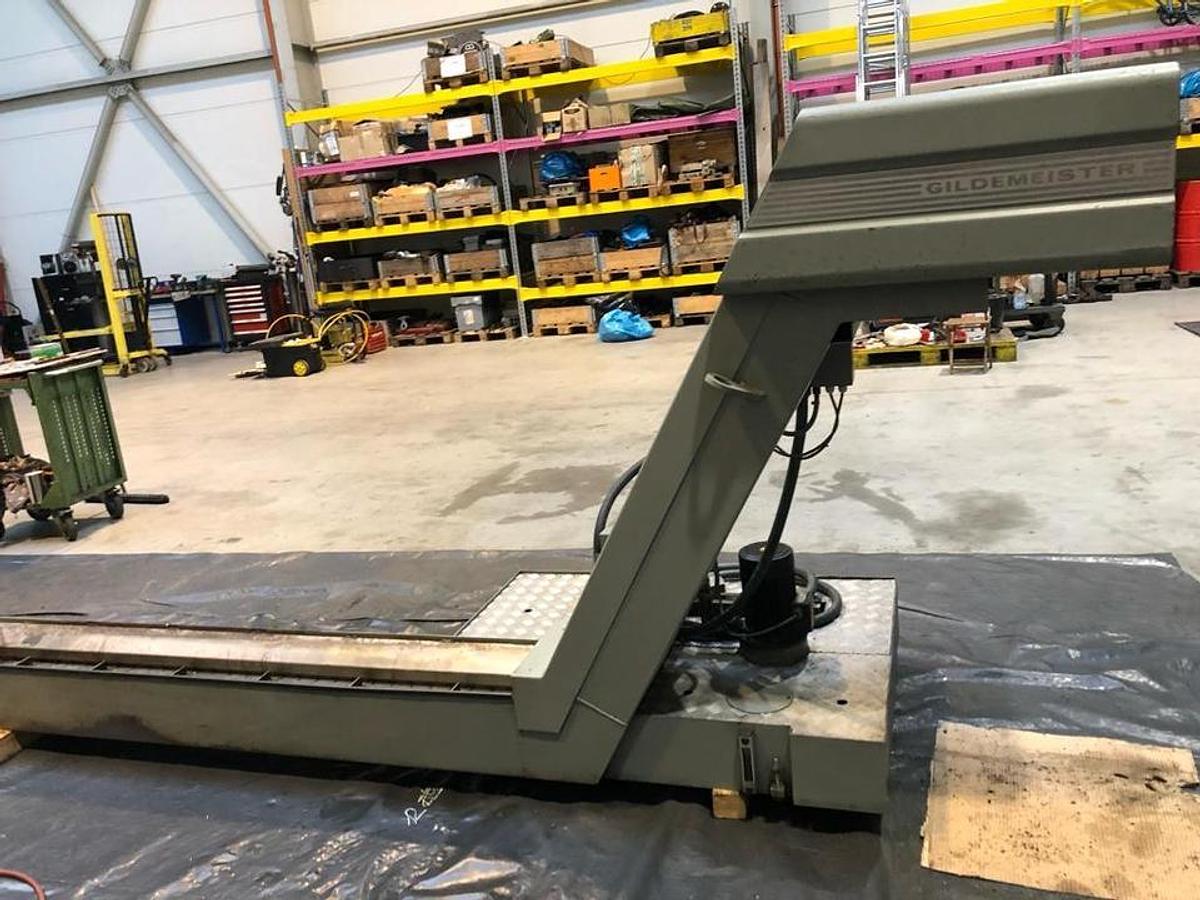

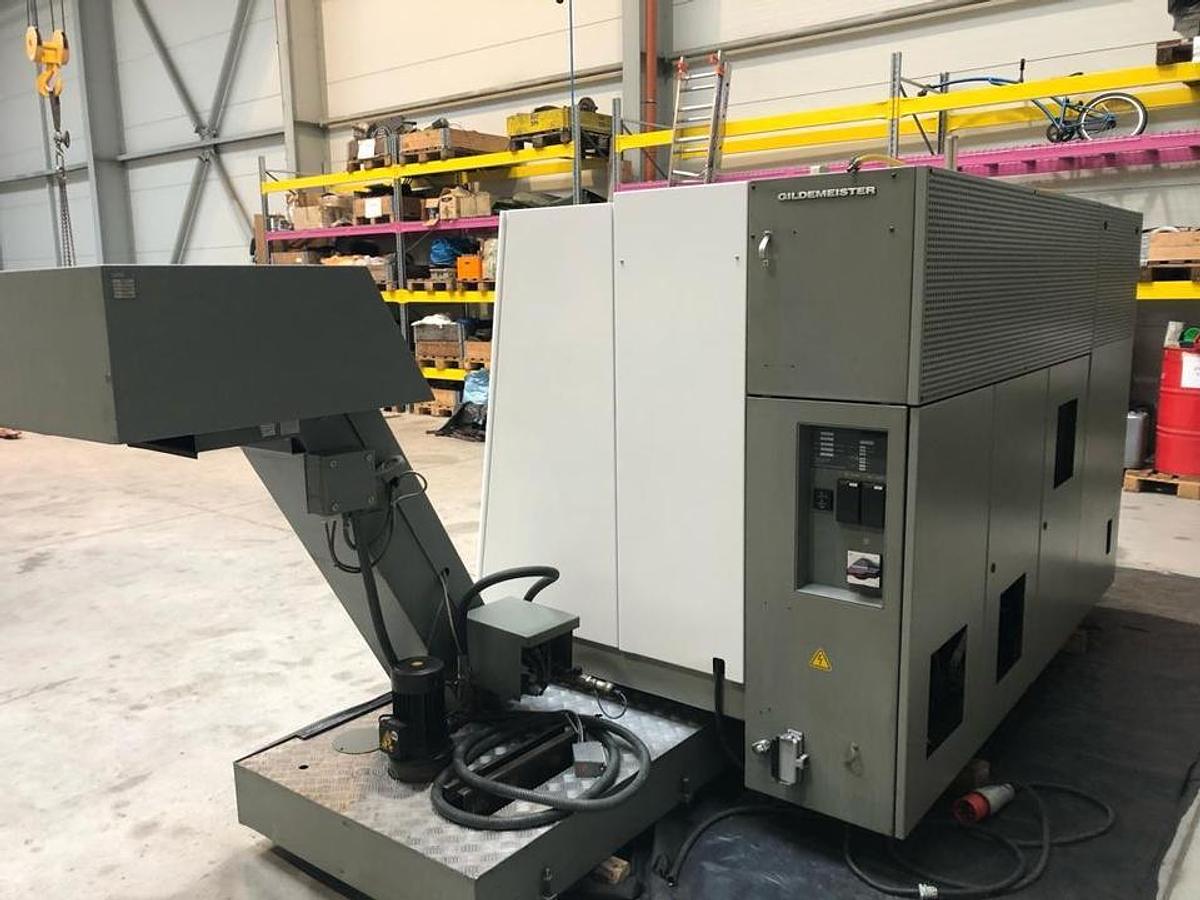

• Rear chip removal system / chip conveyor.
• Autoblok hydraulic self-centering chuck (Ø 210 mm).
• Set of 5 VDI 30 tool holders (includes 2 live/driven units).
• Work zone cooling and lighting system.
• Technical documentation and operating manuals.

Terms and conditions:

Used machine, offered in its current condition (as is, where is). Inspection available by appointment; management of commercial and logistical process.

Location:

Approximate location. Detailed information will be provided during the commercial process.

Technical information:

The technical information provided is indicative. The specifications, dimensions and capabilities may be subject to variations.
