2019 Hurco TM8i - Toruń, Poland
2019 Hurco TM8i - Toruń, Poland
Location:Torun, Poland
Description

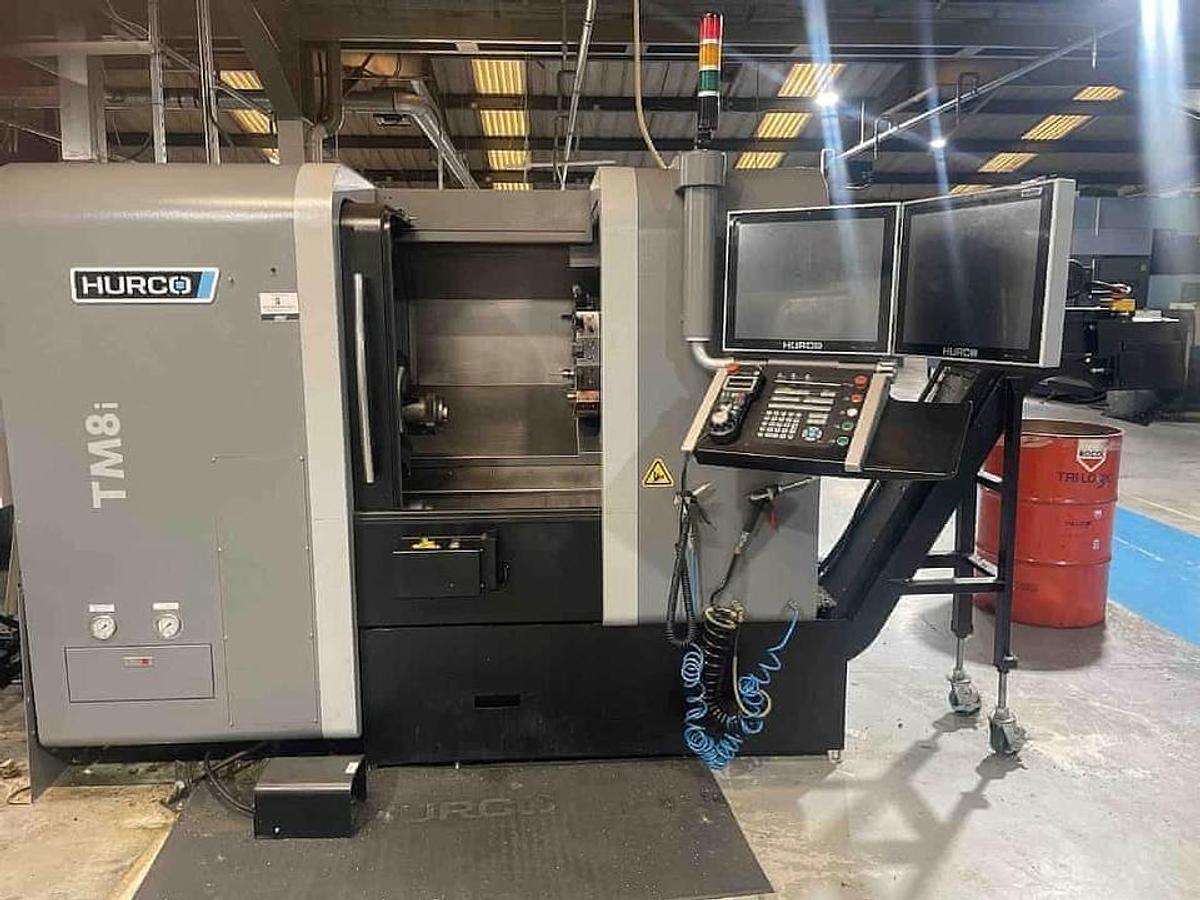

Hurco TM8i high-precision CNC lathe, manufactured in 2019, equipped with the renowned Hurco WinMax dual-screen interactive console. A robust and versatile machine, ideal for machining medium-sized parts with excellent cycle times.
Key Advantages:

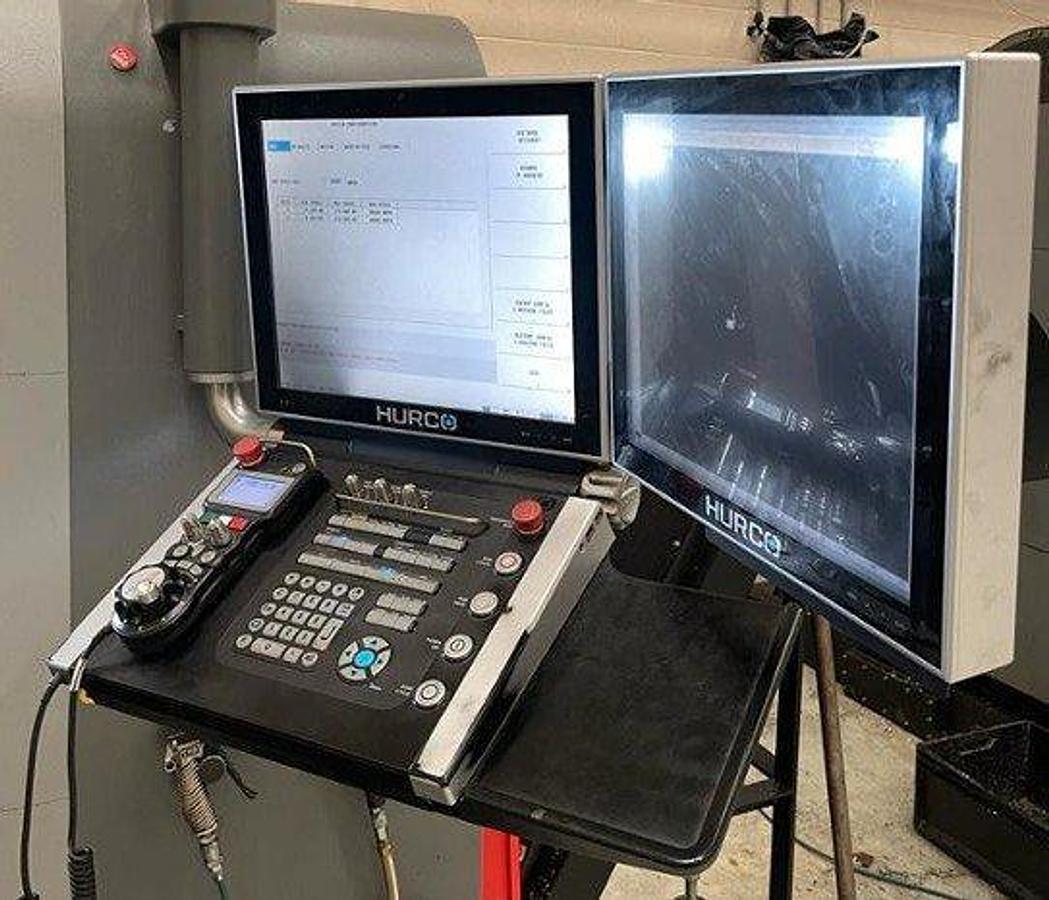

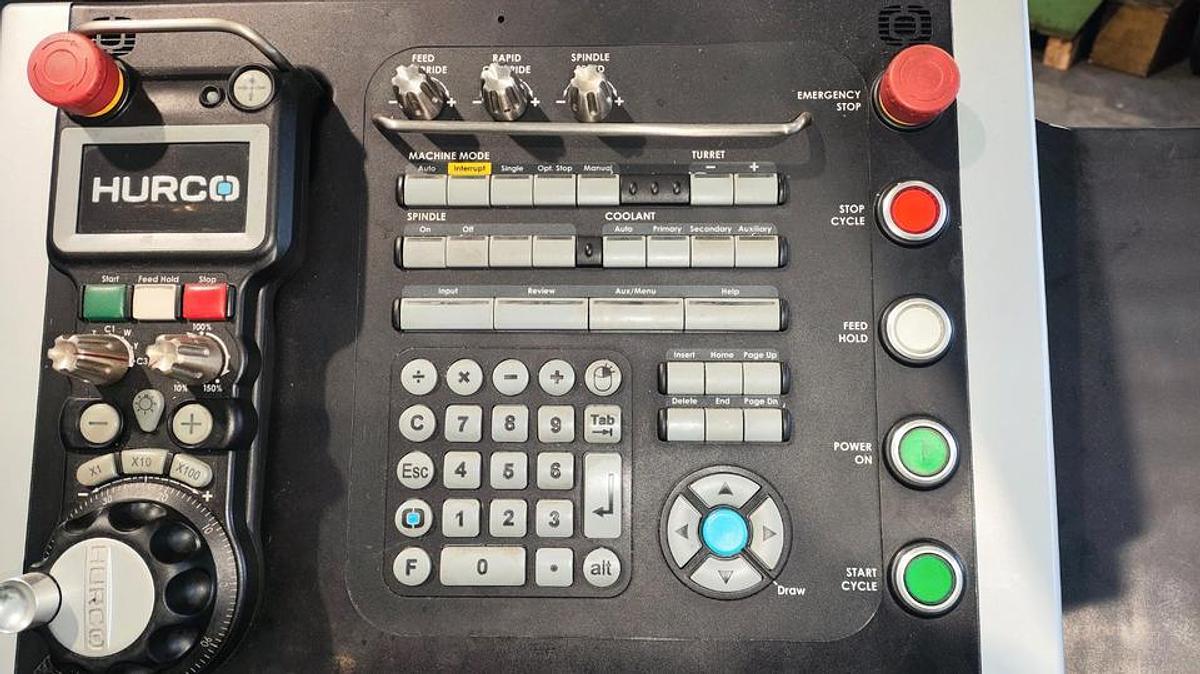

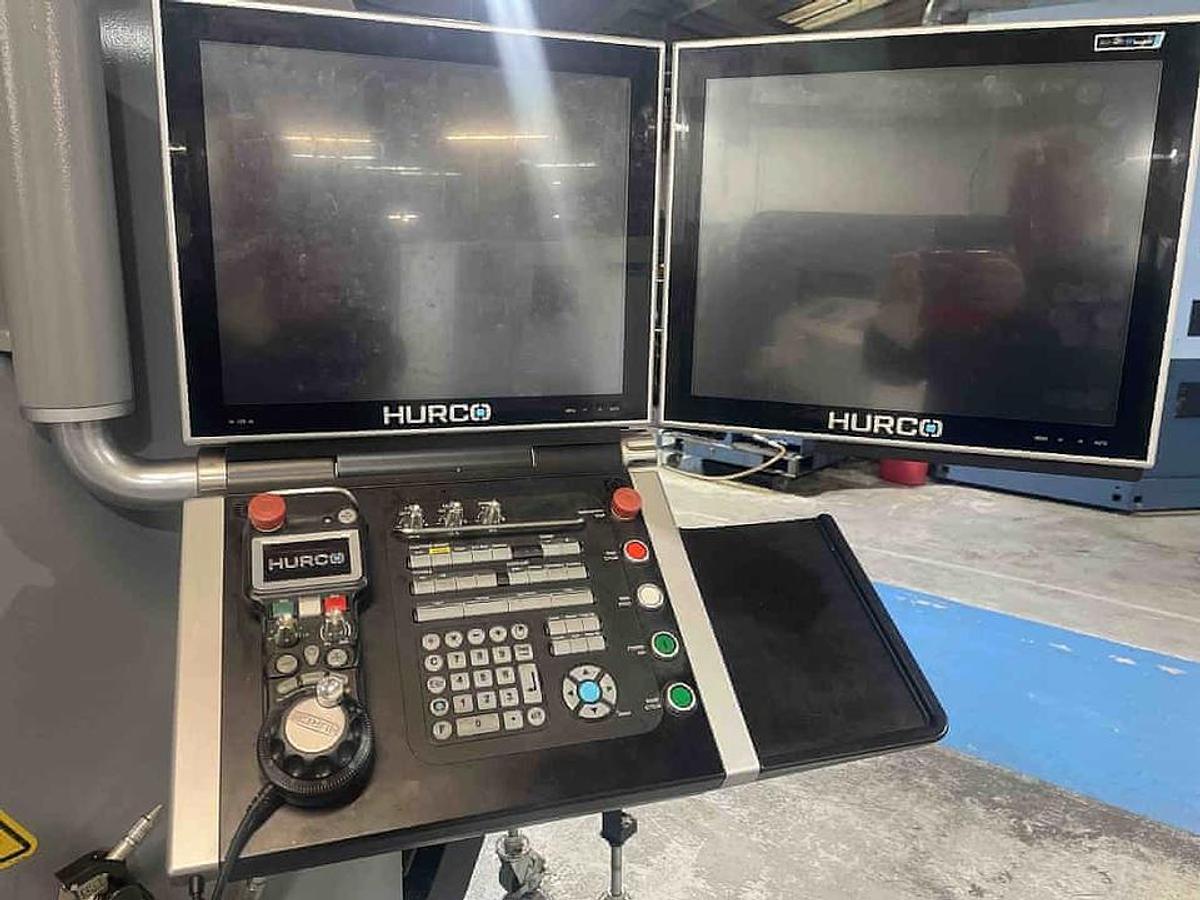

- WinMax Intelligent Control: High-productivity dual-screen interface that enables direct conversational programming on the shop floor or G-code loading, streamlining setup times.
- Power and Performance: 19 kW spindle motor with up to 4,000 rpm and 100.7 Nm of torque, offering an excellent balance between material removal capacity and fine finishing.

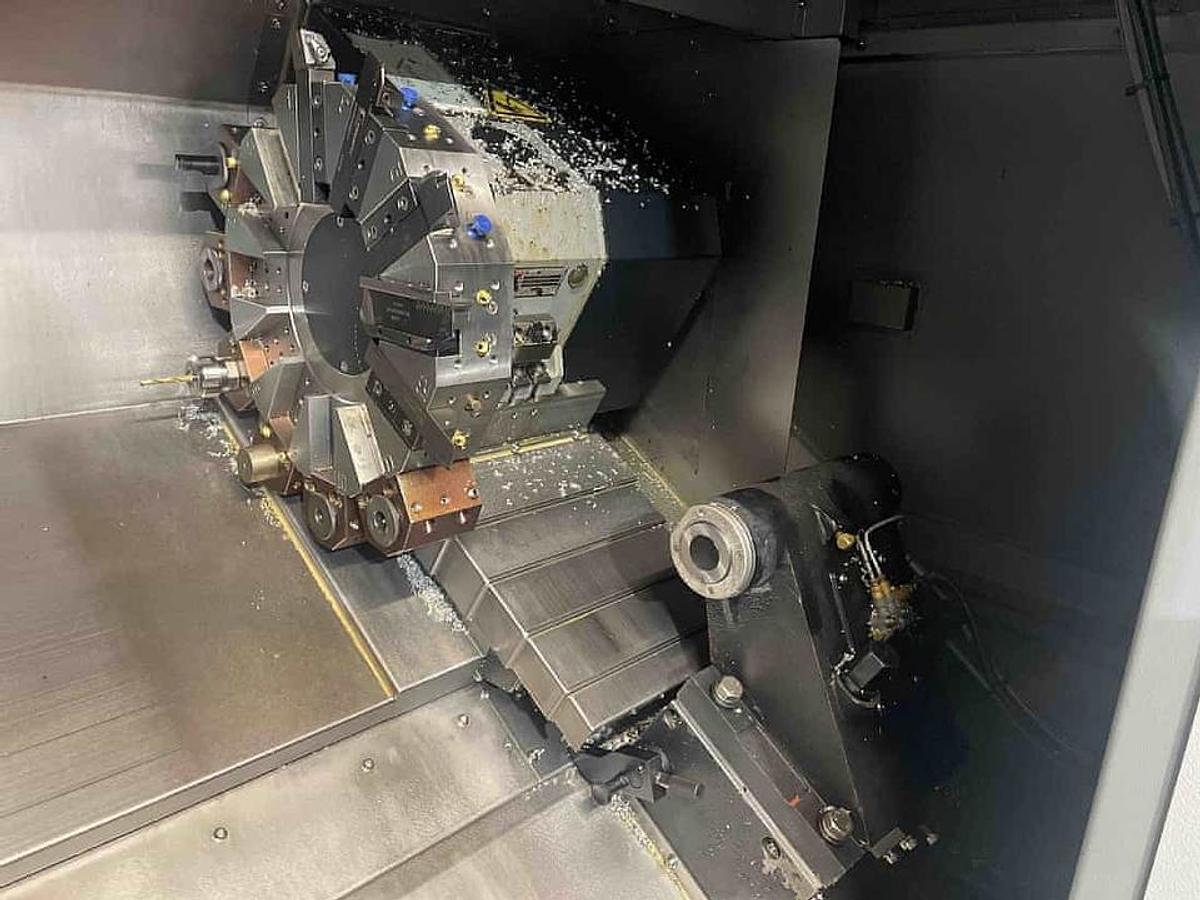

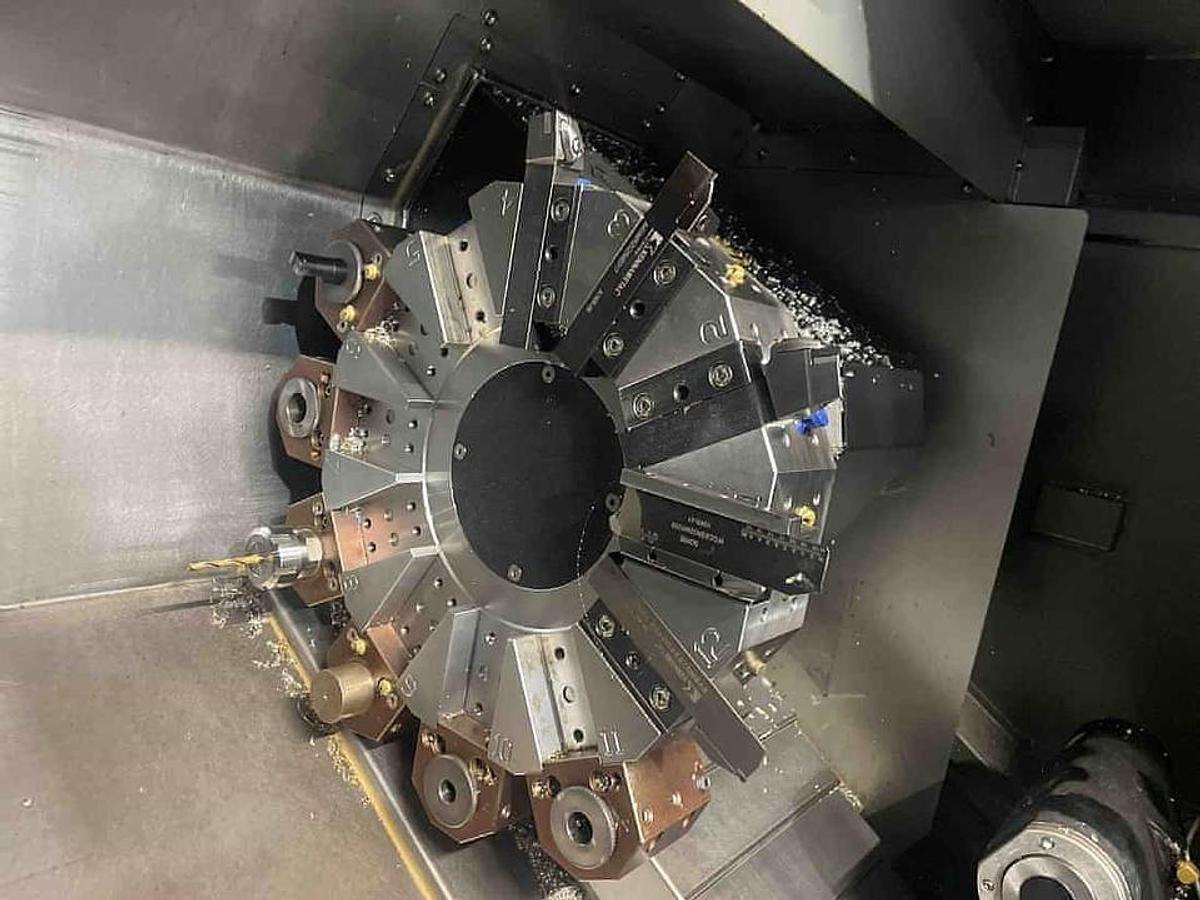

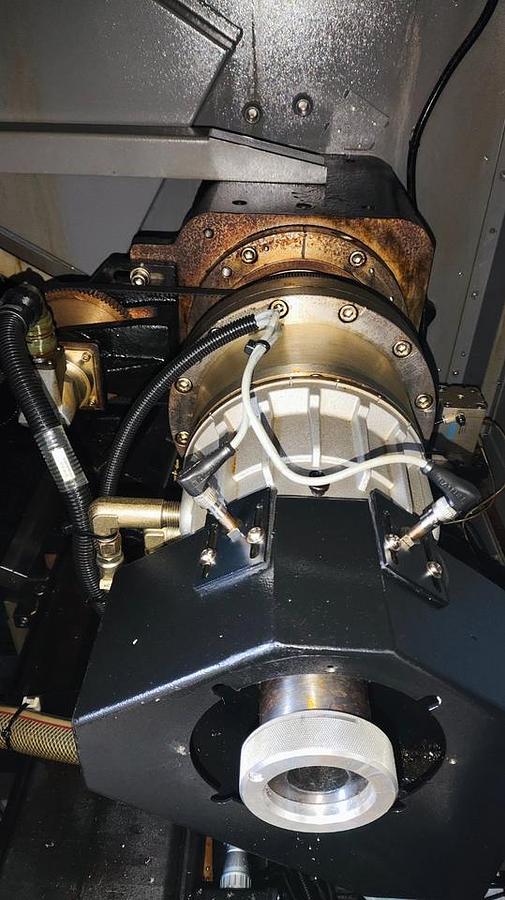

- 12-Station Industrial Turret: Agile and rigid tool change system, designed to minimize downtime between operations.
- 64 mm Bar Capacity: Allows for the integration of continuous feed systems for the serial production of cylindrical parts.
Included: Loading onto a truck is included in the price. The machine can be viewed by appointment.
Terms and conditions:
Used machine, offered in its current condition (as is, where is). Inspection available by appointment; management of commercial and logistical process.
Location:
Approximate location. Detailed information will be provided during the commercial process.
Technical information:
The technical information provided is indicative. The specifications, dimensions and capabilities may be subject to variations.
Specifications
| Manufacturer | Hurco |
| Model | TM8i |
| Year | 2019 |
| Condition | Used |
| Stock Number | 100256 |
| Maximum turning diameter | 356 mm |
| Maximum turning diameter over bed | 525 mm |
| Maximum turning diameter over cross slide | 300 mm |
| Maximum turning length | 525 mm |
| Distance between centers | 597 mm |
| Maximum bar stock diameter | 64 mm |
| X/Z axis travels | 203 mm / 550 mm |
| Spindle power | 19 kW |
| Maximum speed | 4,000 rpm |
| Maximum torque (high gear) | 100.7 Nm at 1,000 rpm |
| Spindle nose | A2-6 |
| Turret type | T-slotted disc |
| Plate diameter | 210 mm |
| Number of stations | 12 positions |
| Indexing time (adjacent stations) | 1.3 s |
| Indexing time (opposite stations) | 3.6 s |
| Rapid feed X/Z axis | 30 m/min |
| Machine weight | 4,030 kg |
