2001 Bridgeport VMC 1000 XP

2001 Bridgeport VMC 1000 XP
Location:Lich, Germany
Description

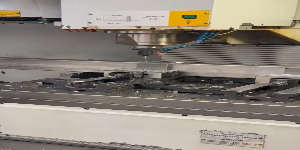

A vertical CNC machining center is offered for sale Bridgeport VMC 1000 XP equipped with Heidenhain control, coming from an industrial company where it has been regularly used in production. The machine is in good operating condition and is put up for sale due to changes in manufacturing requirements, so it is no longer needed within the current production process.
The machine is ready for immediate use and is supplied with a zero-point plate, which facilitates rapid integration into the production environment. The workholding jaws (vices) are not included in the sale.
Main features:
- Heidenhain CNC Control
- High-precision vertical machining center
- Machine ready for immediate production
- Includes zero point plate
Spindle information:
- The spindle was replaced in 2017.
- The operating hours indicated correspond to the accumulated time of the spindles installed in the machine, including both the original spindle and the one currently mounted.
Terms of sale:
Used machine, offered in its current condition (as is, where is). Inspection available by appointment; management of commercial and logistical process.
Location:
Approximate location. Detailed information will be provided during the commercial process.
Technical information:
The technical information provided is indicative. The specifications, dimensions and capabilities may be subject to variations.
Specifications
| Manufacturer | Bridgeport |
| Model | VMC 1000 XP |
| Year | 2001 |
| Condition | Used |
| Stock Number | 100210 |
| Control hours | 45.137 h |
| Spindle operating hours: | 10.631 h |
| Program execution time: | 11.497 h |
| Spindle | Replaced in 2017 |
| X axis | 1.020 mm |
| Y Axis | 510 mm |
| Z Axis | 510 mm |
| Table dimensions | 1.150 x 500 mm |
| Maximum table load: | approx. 600 Kg |
| Spindle cone | BT40 |
| Spindle power | 13 kW |
| Maximum spindle speed | 8.000 rpm |
| Rapid traverse on X/Y/Z axes: | approx. 20 m/min |
| Voltage | 400 V |
| phases | 3 |
| Frequency | 50 Hz |
| Maximum current | 30 A |
| Protection/ Fuse | 6 kA |
