CME FU 1E (1989) - Universal milling machine - Austria

The 1989 CME FU 1E universal milling machine is a versatile and robust machine. This milling machine features an ISO 40 spindle taper, a motor with a maximum power of 5.25 kW, and a variable speed ranging from 40 to 1,800 rpm in 12 steps. The feed rate varies from 5.6 to 1,030 mm/min in 18 steps, allowing for a high degree of precision in the milling process.

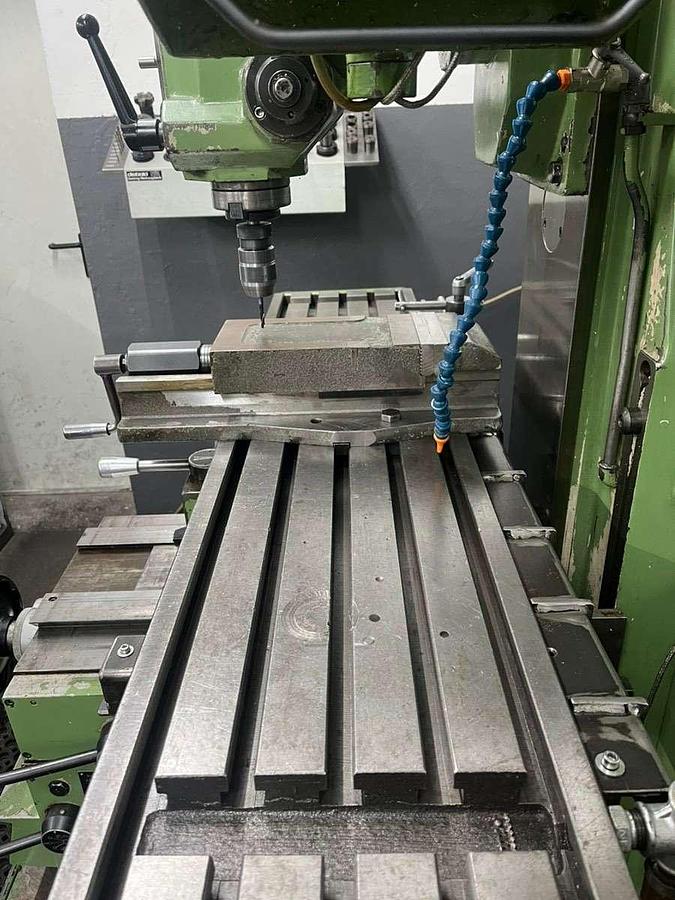

The table size is approximately 1,300 x 300 mm, with travels of 950 mm on the X-axis, 300 mm on the Y-axis, and 450 mm on the Z-axis. It weighs approximately 2,000 kg, providing stability during operation. This used machine is in good overall condition, fully functional, and ready for immediate use.

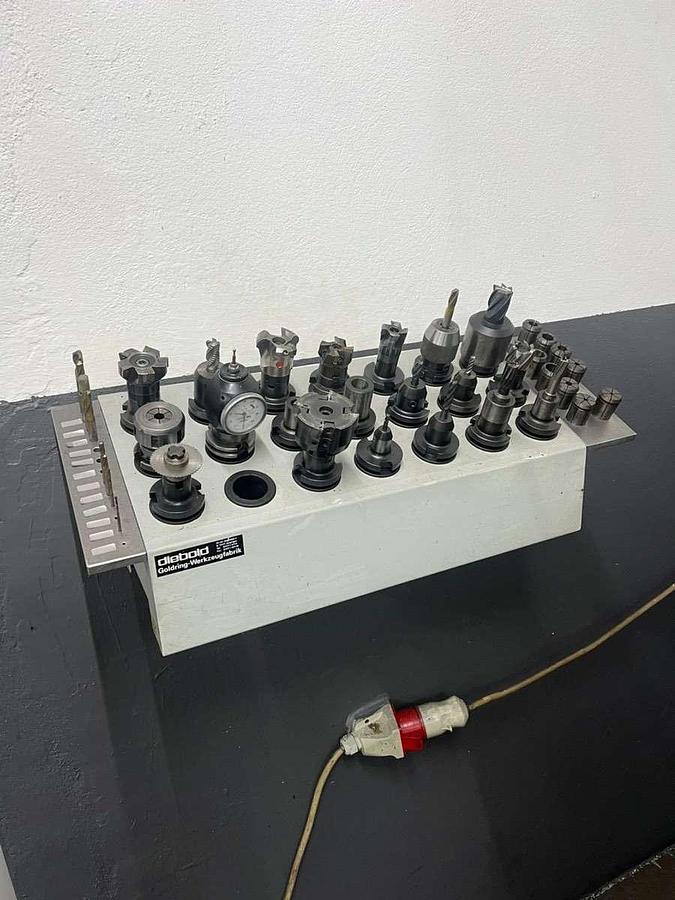

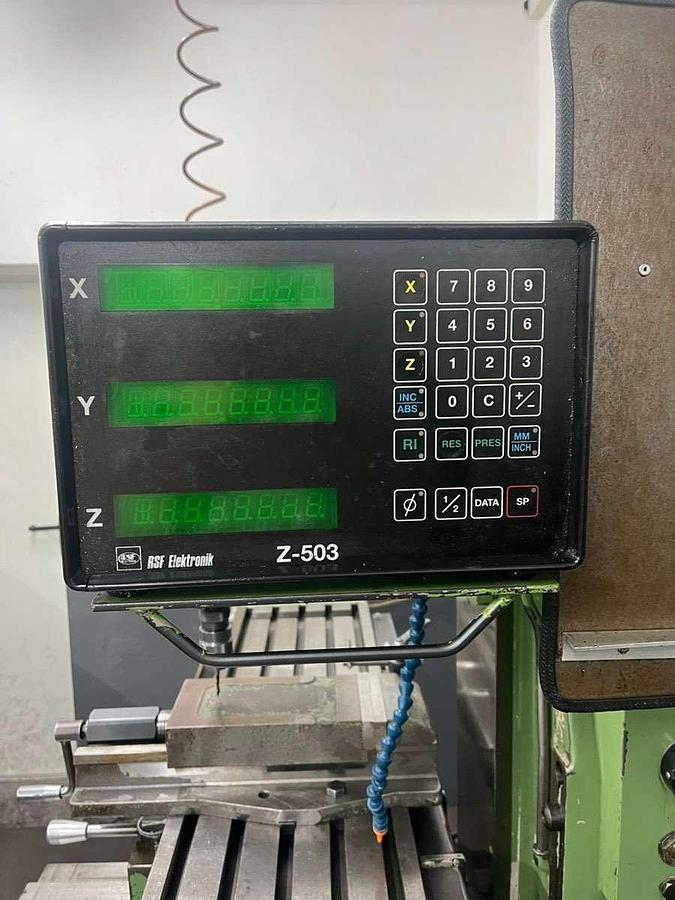

It includes a digital display for the X, Y, and Z axes, a coolant pump, a vise, and additional accessories such as a 3D probe for position detection, collet sets, and ISO 40 tool holders. It can be purchased with all existing accessories, and a live demonstration can be arranged by appointment.

Location: Austria

The machine is available immediately, subject to prior sale.

The technical information provided is for guidance only. The measurements and capacities indicated are approximate and may differ slightly from the actual values ​​depending on the equipment and its configurations.
