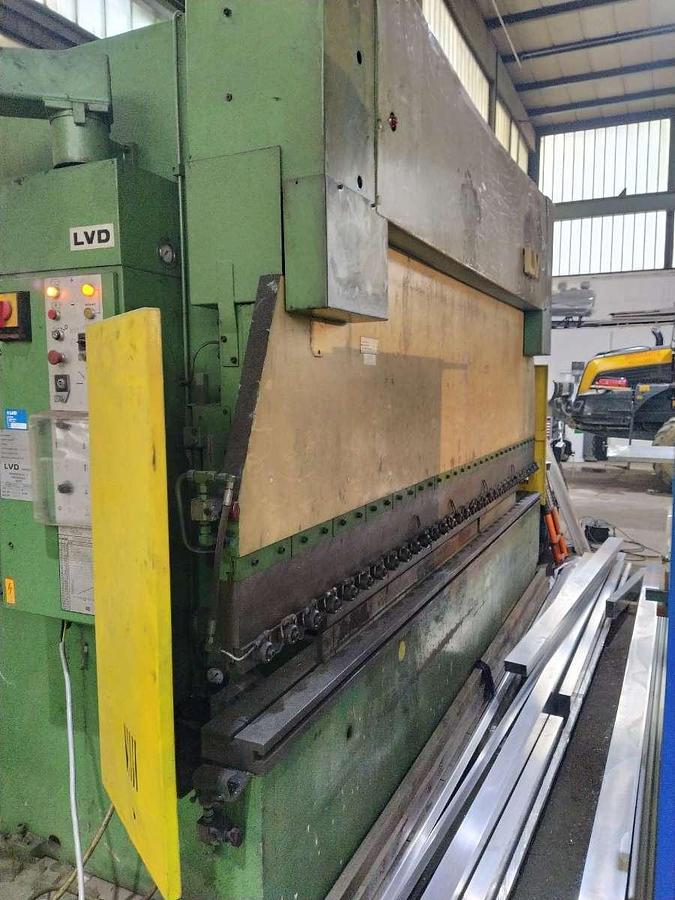

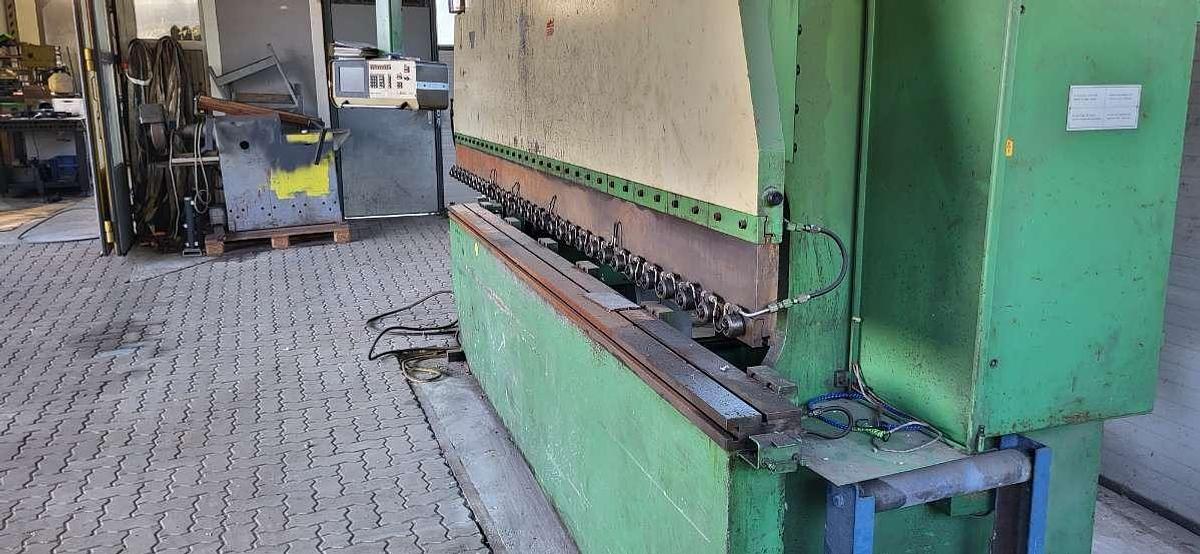

LVD PPN 150 40 (1991) - Press brake machine - Austria

LVD PPN 150 40 (1991) - Press brake machine - Austria
€11.500 (EUR)
Ubicación:Austria
Descripción

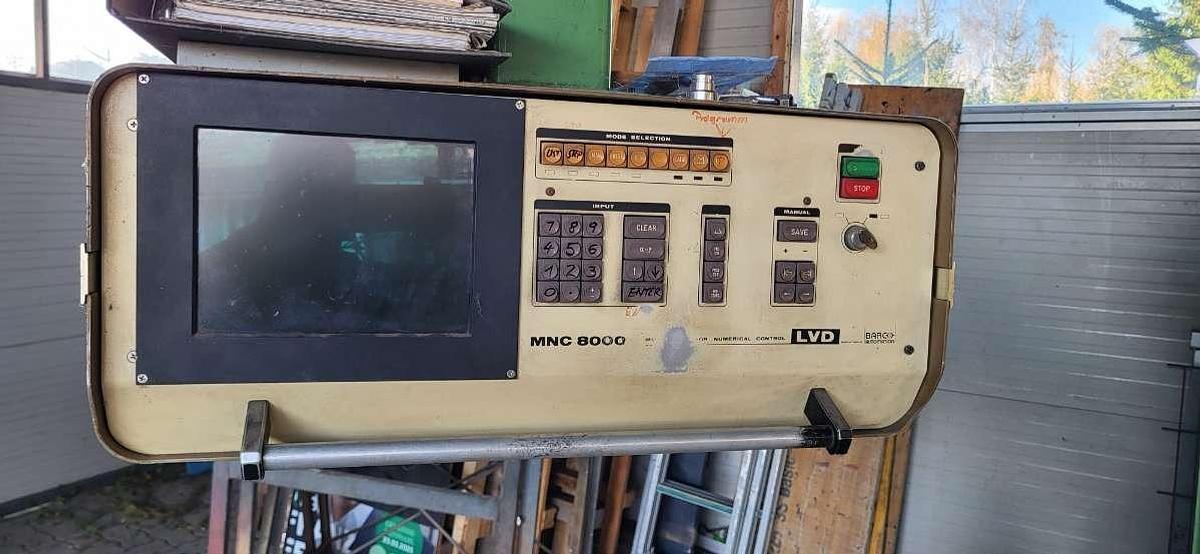

The LVD PPN 150 40 press brake, manufactured in 1991, offers a pressing force of 150 tons and a bending length of 4 meters. Although the machine is in good mechanical and hydraulic working order, the CNC control has issues that require attention.

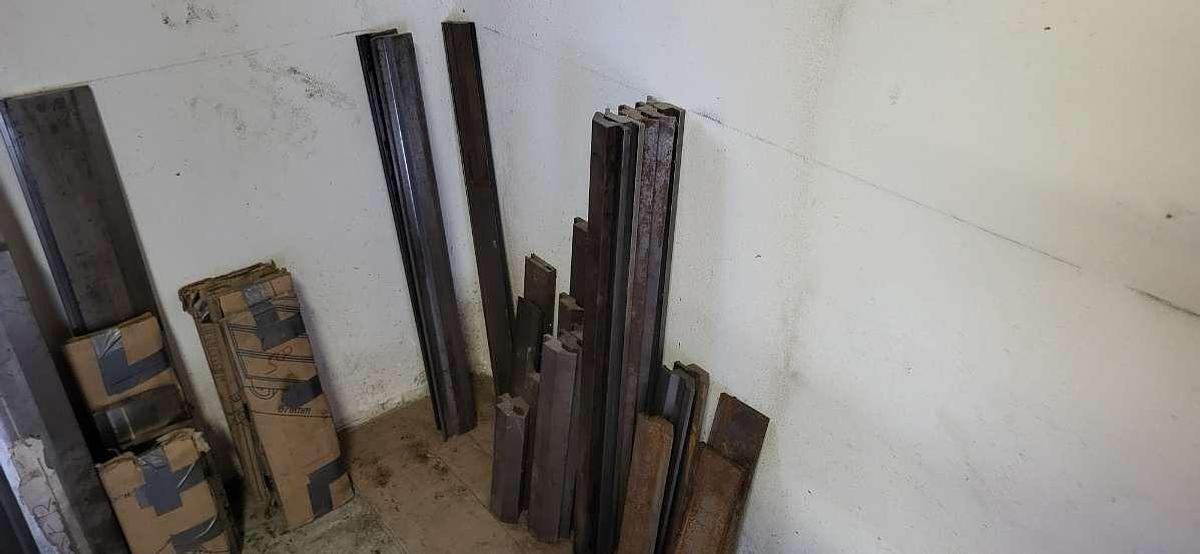

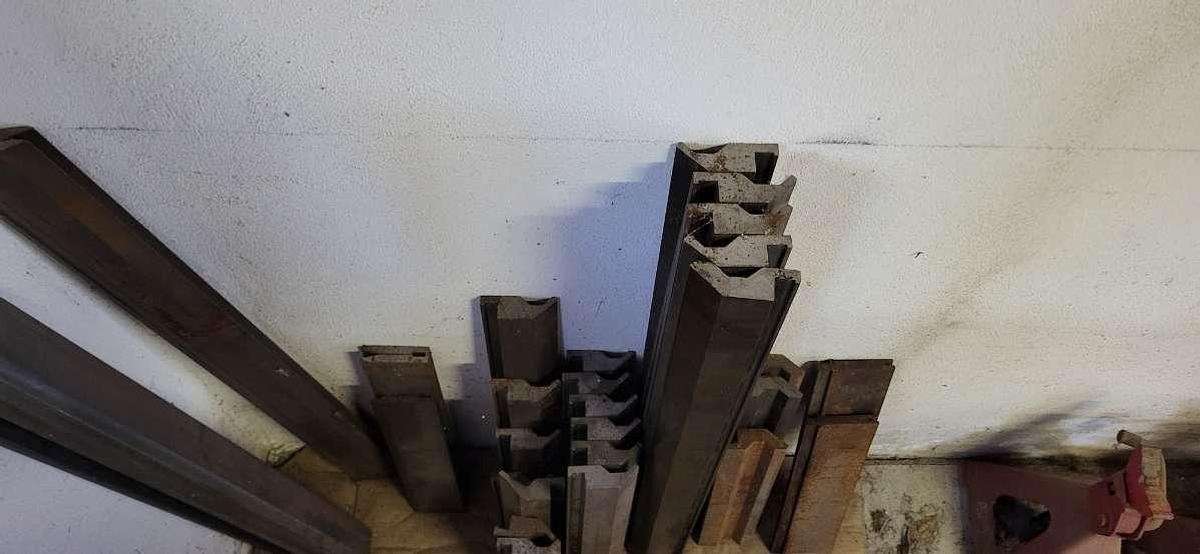

This equipment is equipped with hydraulic clamping for the upper and lower dies, and some tooling is included. The press brake weighs approximately 13 tons. It is being sold due to the owner's acquisition of a new business.
For more details on the CNC control and other specifications, please do not hesitate to contact us. This machine represents a solid option for those who require robust and reliable bending equipment in their operations.
Location: Austria
The machine is available immediately, subject to prior sale.
The technical information provided is for guidance only. The measurements and capacities indicated are approximate and may differ slightly from the actual values depending on the equipment and its configurations.
Especificaciones
| Fabricante | LVD |
| Modelo | PPN150 40 |
| Año | 1991 |
| Condición | Usado |
| Número de Stock | 100079 |
| Pressing force: | 150 tons |
| Bending length: | 4,000 mm |
| Distance between uprights: | Approx 3,150–3,250 mm |
| Cylinder stroke: | 200–250 mm |
| Maximum open height: | 400–450 mm |
| Throat depth: | 250–300 mm |
| Voltage: | 380 V |
| Frequency: | 50 Hz |
| Weight: | Approx 13,000 kg |
